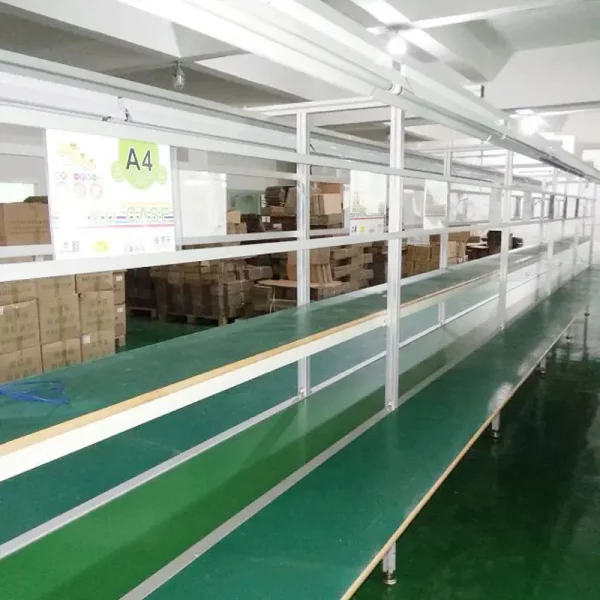

BC-11M-300W Assembly line conveyor Platen production lineassembly line conveyor for products manufacturing
SunzonTech assembly line conveyor
we have served lots of customers building their own assembly line conveyor or expanding their production area. We can always know what is the most perfect scheme of customer’s wishes. Customers can not only join the design of assembly line conveyor but they can also put much thoughts on the design. We are always open and try our best to match the requirement of our customers.
Share to:
| No. | Items | Specifications and Materials | Q’ty |
| 1 | assembly line conveyor specifications | (L)11000*(W)450*(H) 1950±20㎜； | 11m |
| 2 | Fuselage structure | The assembly line conveyor’s bracket is made of 40 × 40*1.2MM iron material, surface spray treatment; The guide rail is made of 40 × 60*1.2MM iron material surface spray treatment; The lamp bracket is made of 40 × 40*1.2MM iron material surface spray treatment; |
11m |
| 3 | Lighting system | LED “Lv Shi” brand single bracket with cover, equipped with LED “Foshan” brand lamp tube, the lamp tube bracket is made of “50*25” aluminum material, 1 wire on each side, the wire uses “Jinhuanyu” 1.5 square wire, Segmented control | 16 units |
| 4 | Power supply | The lower part of the wire body is equipped with sockets, and the two sides are controlled separately. The wires use “Jinhuanyu” 4 square meter wires, two per meter, one on each side, and the wire groove is made of galvanized plate, the size is 60 × 80 × 0.8 mm | 22 units |
| 5 | Air system | The main air pipe is made of 6-minute galvanized pipe, and each meter is equipped with a set of quick connectors. | 11 units |
| 6 | Instrument desk | Width: 450mm The instrument panel board adopts δ18mm plywood, with white fireproof board on the surface, the bracket is made of 40×20 flat iron, and the surface is sprayed with powder. |
11 m |
| 7 | Fittings | The craft holder is made of 25×14 “H” aluminum, each station is equipped with a set of A4 rubber sleeve and the size is 210×297mm (A4 paper shall prevail), one set per station; | 22 units |
| Aluminum alloy material, each station is equipped with a set of plastic trolleys. | 22 units |
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
