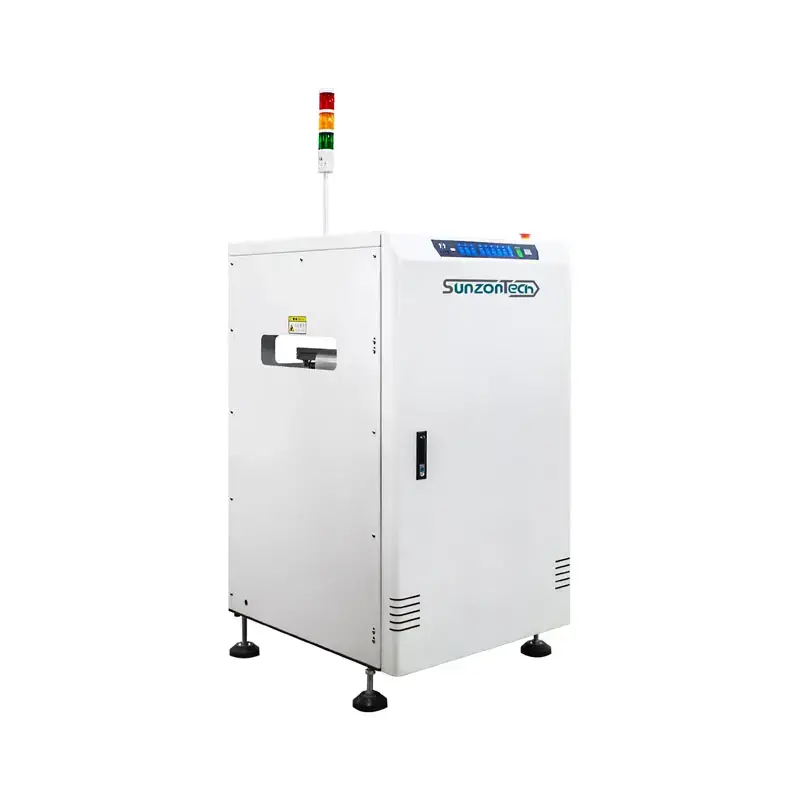

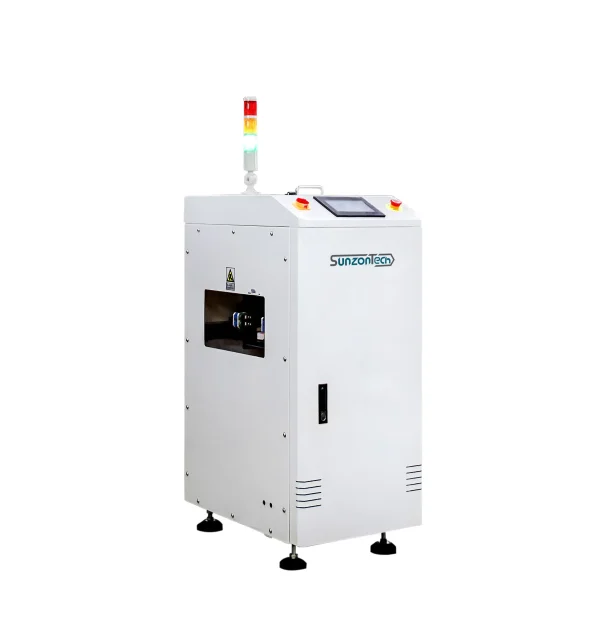

IM-250w-SZ Automatic inverting PCB flipper machinePCB handling flipper machine for double side processing
SunzonTech PCB flipper machine is used to invert PCB(180 degrees) for next process to meet the needs of double-sided processing
PLC micro computer control which is stable and reliable.
Film switch control interface which is very easy to operate.
Acoustic-optic alarm system
Invert mode is balanced, stable and accurate.
Top safety cover can be opened for machine maintenance.
Customizable left to right or right to left
Function of automatic preventing plate stuck
Standard SMEMA signal communication
Share to:
SunzonTech’s PCB flipper machine can invert printed circuit board smoothly and correctly. We do a lots of test with many sizes of PCB and this machine invert with 100% accuracy every time and it is very easy to adjust. We consider lots for producing our products such as durability and reliability. So, our machine will be suitable for small and big production systems. And also it can be highly customized with attractive price-performance ratio.
| Equipment brand | SunzonTech PCB flipper machine |
| Equipment model | IM-250w-SZ Automatic inverting PCB flipper machine |
| Transport direction | Customizable left to right or right to left |
| Transport height | 900±20mm |
| Max effective PCB size | PCB size 50*50 330*250 (length*width) |
| PCB thickness | 0.5-4mm |
| Equipment dimension（L*W*H） | 500*720*1250mm（L*W*H） |
| PCB loading time | 10s adjustable |
| Power supply | AC 220V, 50Hz, 100W |
| Alarm system | Acoustic-optic alarm has three color lights to distinguish the current working state, and the function of acoustic-optic alarm when the operation is interrupted |
| Equipment weight | 160kg |
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
