X-7100 PCB X-Ray equipment Nondestructive inspection machine PCB X-Ray testing equipment X-RAY equipment for SMT production line

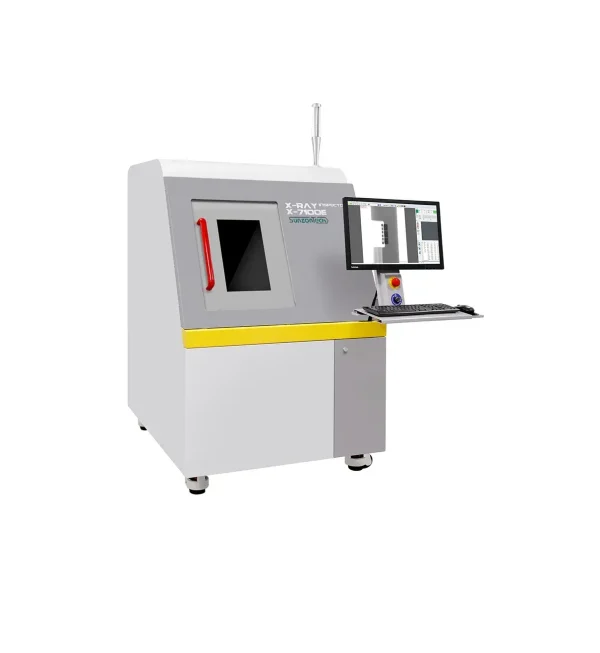

The X-7100 PCB X-ray developed by SunzonTech is a general-purpose X-ray device suitable for PCB X-ray penetration nondestructive testing in most electronics industries. Its core X-ray tubes, made by HAMAMATSU, have a lifespan of up to 15,000 hours.
Share to:
| Items of PCB X-ray machine | configurations and specifications |
| Model | X-7100 PCB X-ray machine |
| X-ray Light tube type | closed type |
| Spatial resolution（um） | 5 |
| Light tube voltage（KV） | 90 （optional 110kv，130kv) |
| Light tube electric current (uA) | 200 |
| Magnification | Geometric magnification: 200, Geometric magnification: 1000X |
| Digital flat panel detector resolution | 1536*11536 Pixel |
| Digital flat panel detector density value | 14bit (16348) |
| Image speed（FPS) | 22 |
| Plate rotation angle | 60 degree |
| Stage size | 410*430mm |
| Stage rotation | 360° |
| X-Y stroke | 800*1000mm |
| inspection range | 5 cm² |
| Machine size（L*W*H) | 1050*1250*1580mm |
| Machine weight | 700KG |
| Operate system | WINDOWS 7 |
| Power supply | AC110-220V 50-60HZ 1200W |
| Radiation safety test | <1 uSV/H |
