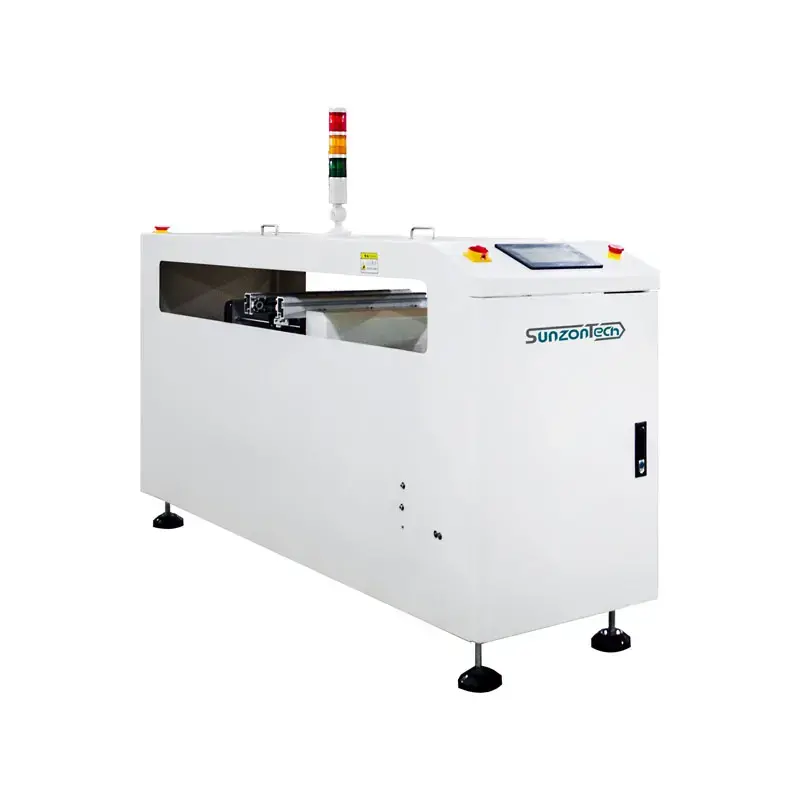

TM-500W-SZ Automatic translation machine PCB shuttle conveyor SMT conveyor combine production lines
PLC control, color man-machine interface operation.
Touch screen control panel which is very easy to operate.
Customizable left to right or right to left
Function of automatic preventing plate stuck
Acoustic-optic alarm system, prompt error message, easy to operate and maintain.
One in and two out, two in and one out or through function
Motion’s distance can be set
Acoustic-optic alarm system, prompt error message, easy to operate and maintain.
Standard SMEMA signal communication mode can connect with other device online.
PCB shuttle conveyor.
Share to:
SunzonTech’s automatic PCB shuttle conveyor machine can combine two production lines into one production line or separate one production line into two production lines. It can always send PCBs to the correct position. It is small and very easy to operate. Also, with this PCB shuttle conveyor, it can highly save labour cost, place cost and machine cost for the end of SMT production line. And also it can be highly customized with attractive price-performance ratio.
Machine Configuration
- YanKong motor with Yankong driver.
- Taiwan “TBI” lifting screw
- Japan “Omron” photoelectric sensor
- Japan “Panasonic” PLC
- “Wilton” true color touch screen control panel.
- Imported German “Egos” cables as mobile cables.
- American “Martin” wheel
- Standard SMEMA at front side and back side.
Product feature
- PLC control, color man-machine interface operation.
- Touch screen control panel which is very easy to operate.
- Customizable left to right or right to left
- Function of automatic preventing plate stuck
- Acoustic-optic alarm system, prompt error message, easy to operate and maintain.
- One in and two out, two in and one out or through function
- Motion’s distance can be set
- Acoustic-optic alarm system, prompt error message, easy to operate and maintain.
- Standard SMEMA signal communication mode can connect with other device online.
| Equipment brand | SunzonTech PCB shuttle conveyor |
| Equipment model | TM-500W-SZ Automatic translation PCB shuttle conveyor |
| Transport direction | Customizable left to right or right to left |
| Transport height | 900±20mm |
| Max effective PCB size | PCB size 50*50 330*250 (length*width) |
| PCB thickness | 0.5-4mm |
| Equipment dimension（L*W*H） | 500*1200*1100mm（L*W*H） |
| Power supply | AC 220V, 50Hz, 100W |
| Alarm system | Acoustic-optic alarm has three color lights to distinguish the current working state, and the function of acoustic-optic alarm when the operation is interrupted |
| Equipment weight | 320kg |
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
