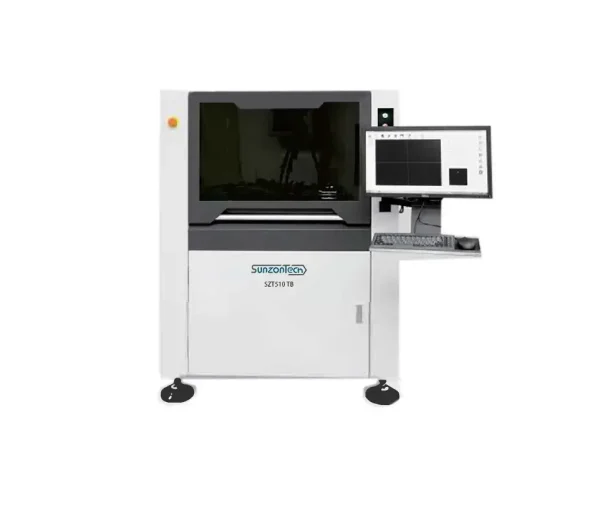

SZT-510TB SMT PCB laser printer machine dual laser head PCB laser printer machine
Zero consumables, environmental protection and energy saving, no damage to copper.
Indelible and modified anti-counterfeit product traceability.
Intelligent link to MES/IMS/ERP and other systems.
Unique intelligent foolproof anti-duplicate code system.
Unique visual correction function to easily cope with FPC expansion.
Bad Mark recognizes bad board jumping laser engraving.
Share to:
SunzonTech PCB laser printer machine SZT-510TB series provide a smart solution for dual laser head PCB laser printer.
It can apply many types of laser head and print many kinds of codes with high quality.
| SZT-510TB dual laser head PCB laser printer machine | |||
| Item | Specifications of PCB laser printer machine | ||
| Model | SZT-510TB PCB laser printer machine | ||
| feature | Online or offline, rail or vacuum, dual laser head. | ||
| Laser Type | UV laser, Green laser, Fiber laser, C02 laser | ||
| Wave Length | 355nm532nm1064nm10640nm | ||
| Power | 3w, 5w/7w, 10w/10w, 20w, 30w/10w, 20w, 30w | ||
| laser range | 50*50-420*450mm | ||
| laser speed | Max 7000mm/s( sample white ink laser 3×3mm, 55 units barcode, finish in 1s) | ||
| laser accuracy | ±0.05mm (can be customized) | ||
| repeat accuracy | ±0.02mm | ||
| PCB size | Smaller than 420*450mm | ||
| Power demand | 220V/50Hz , total power≈2500W | ||
| One dimenstion code | Code 39, Code 25, Code 93, Code 128, EAN-13, EAN-8, ISBN etc. | ||
| QR code | Datamatrix, QR Code, micro QR Code, PDF417, Code 49, Code 16K etc. | ||
| Code size | 1.5mm×1.5mm～ 20mm×20mm （Min size depends on laser type） | ||
| Font type | TrueType Font , JSF, SHX, DMF | ||
| Min Font high | 0.1-0.4mm | ||
| Support file type | DXF, PLT, Excel, TXT | ||
| Auto locate | Support auto taking photo， 2, 3, 4 points locate | ||
| Auto scan code | Auto scan and read data from code | ||
| Smart production | Connect w ith ERP/MES/SAP, Auto get work oder, batch number, item number and Auto laser | ||
| Size and weight | Main: 1120x1600x1750mm, weight: 1000kg | ||
| Environment | Tem.: 20-28°C, Hum.: 30%-60% | ||
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
