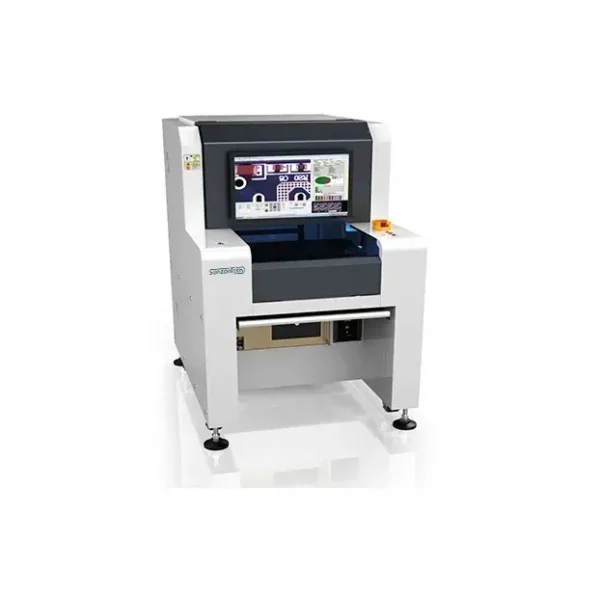

SMT AOI equipment SunzonTech JTA-518 series SMT AOI equipment for PCB inspection
Double-Table, Mutual Board Enter Testing at No Stop Situation,Saving the Time of Board Taking and putting
High Production Efficiency SMT AOI equipment
Two Different PCB Inspected at the Same Time
DIP process front and back simultaneously inspection
Share to:
| Model | JTA-518M SMT AOI equipment | JTA-518L SMT AOI equipment | JTA-518D SMT AOI equipment | |
| PCB Spec. | PCB Size | 60x50mm – 400x320mm | 60x50mm – 650x520mm | 60x50mm – 250x320mm |
| PCB Thickness | 0.5mm-5mm | |||
| Component Height | Top: 35mm Bottom: 110mm | |||
| PCB warpage | ±3 mm | |||
| Power | 1.3 KW | 1.9 KW | ||
| Optical Parameter | Resolution | 15um standard; 10/23um optional | ||
| Speed | 0.25 sec/FOV | |||
| Camera Spec. | 500w high speed color camera | |||
| Optical Lens | Telecentric Optical lens | |||
| Light-source | RGBW 6 load | |||
| Inspection category | Component Inspection | Missing, rolling, shifting, polarity, error, wrong part, damaged, bended, pcb abnormal, residua, glue over flow | ||
| Solder Inspection | Excess solder, insufficient solder, bridging, lifting, solder ball, soldering abnormal | |||
| Special Inspection Items | Can check solder paste and adhesive glue process wave, soldering quality | |||
| Hardware | Table Positioning Accuracy | ±0.01 mm | ||
| Table Speed | 1000 mm/s | |||
| PCB Loading | Manual | |||
| PCB width modulation. | PCB manual adjust width | |||
| Main Frame Body | Whole cast Iron Modeling | |||
| Screwing-shaft | High precision ball screw | |||
| Rail | high level rail | |||
| Driver | AC servo motor | |||
| Operating System | Win 7 | |||
| Display | 22 LCD display | |||
| Power Supply | AC 200-240V 50/60hz | |||
| Air Pressure | No need | |||
| Dimension(W*D*H) | 876x1210x1472mm | 1113x1549x1424mm | 1136x1448x1375mm | |
| Weight(KG) | 550±10KG | 750±10KG | 600±10KG | |
| Software | Inspection Method | The Convector analysis & OCV silkscreen Algorithm | ||
| Inspection Angle Area | 0-360 ° ±1° | |||
| Marking Function | One board, Multi-access Board, bad board etc. | |||
| Programming Mode | CAD loading, component database auto-index, auto-programming by intelligent software | |||
| Remote Control | Network, offline debugging, online monitoring, Manipulating, Remote realized exam | |||
| Data Recording | Auto-generated statistical process controlling data(SPC) & report | |||
| Quality Tracing(Option) | Offline programming system | |||
| Three-point-verification System(Option) | 1D/2D bar-code reading(S/W + license) MES/shop floor | |||
| Option | 1D/2D Bar-code Scanner (H/WV) | Pin support, Light source corrector | ||
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
