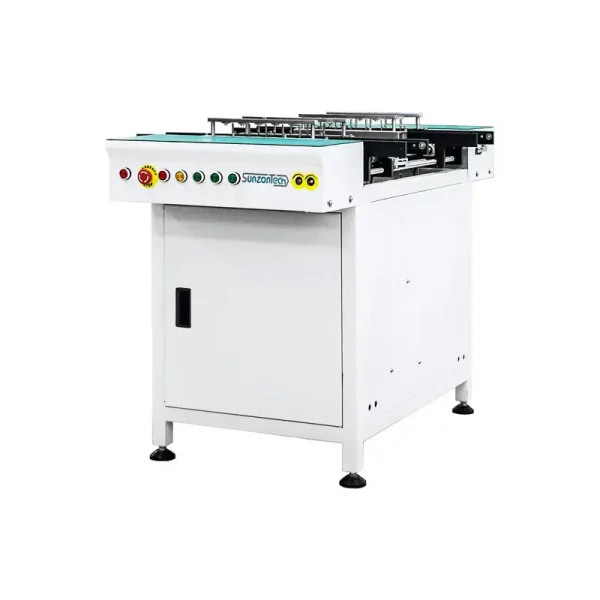

NB-800L PCB cache conveyor machine
This PCB cache conveyor machine is behind AOI or SPI in SMT production line. It will lift up NG plates, save NG PCB on rack and pass OK PCB.

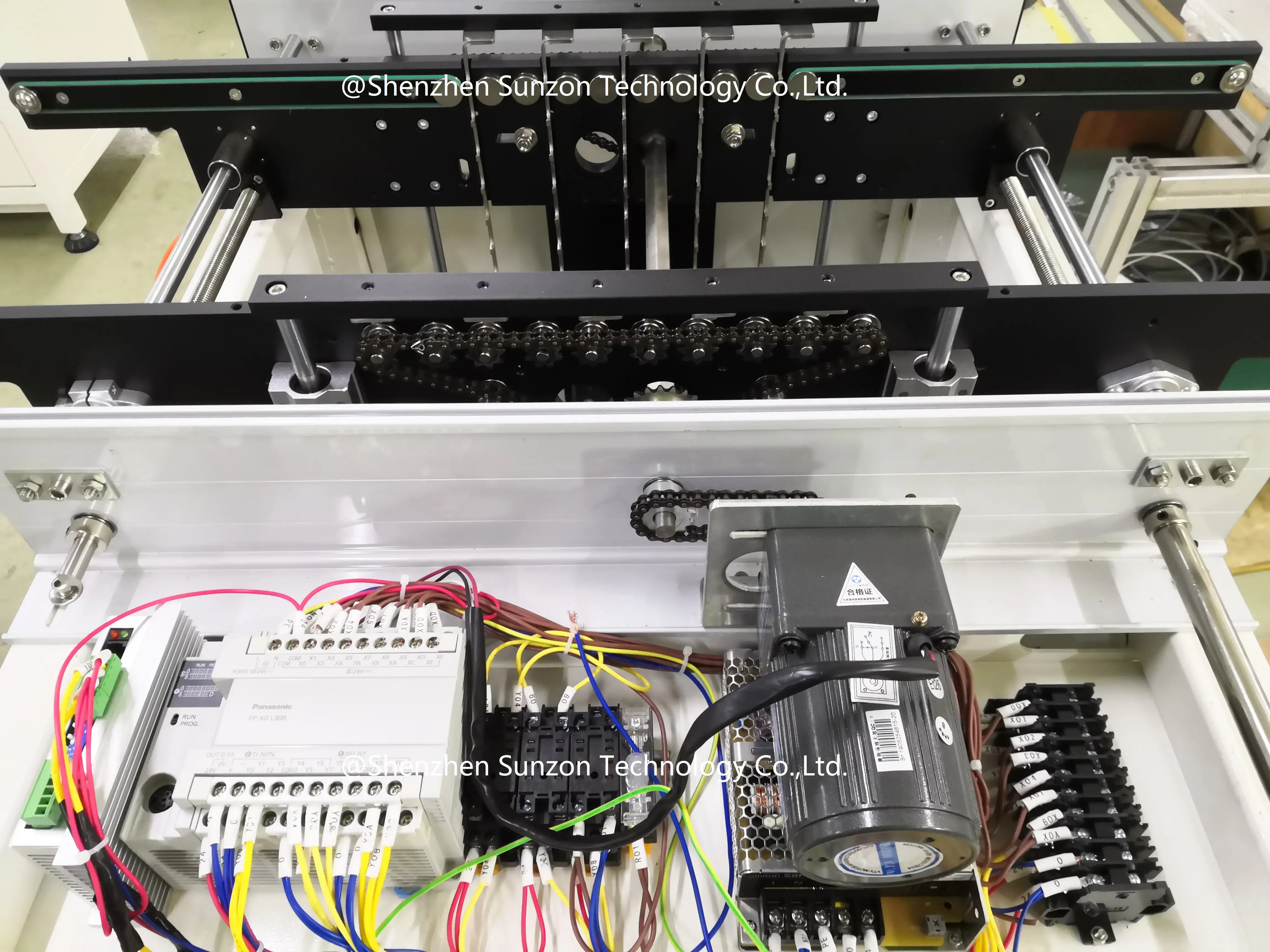

Panasonic PLC micro computer control which is stable and reliable.

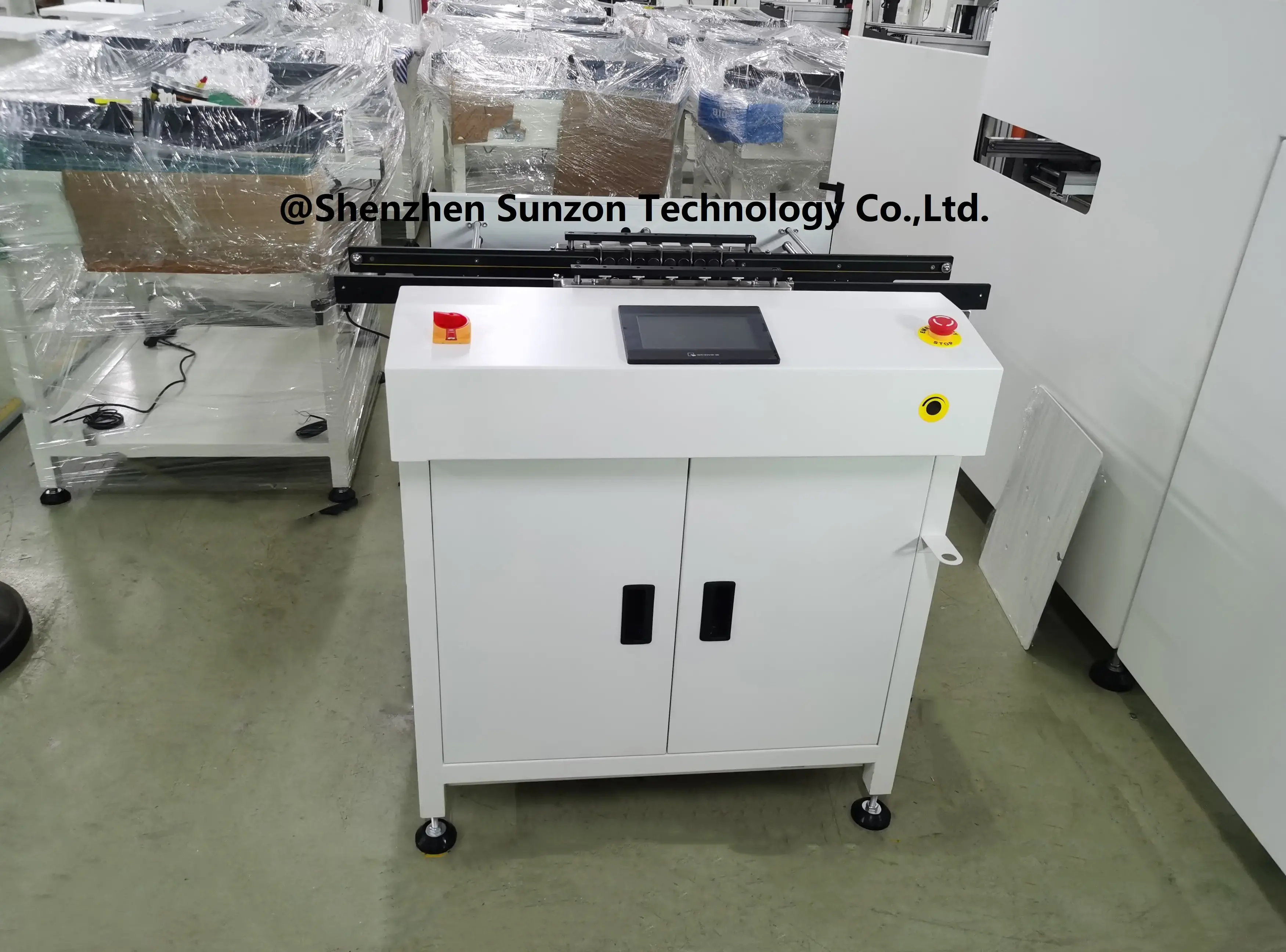

Button control panel which is easy to operate. (You can also choose touch screen control)
Acoustic-optic alarm system
Customizable left to right or right to left
Automatic pass OK plates, lift up and save NG plates.
Standard SMEMA
Share to:

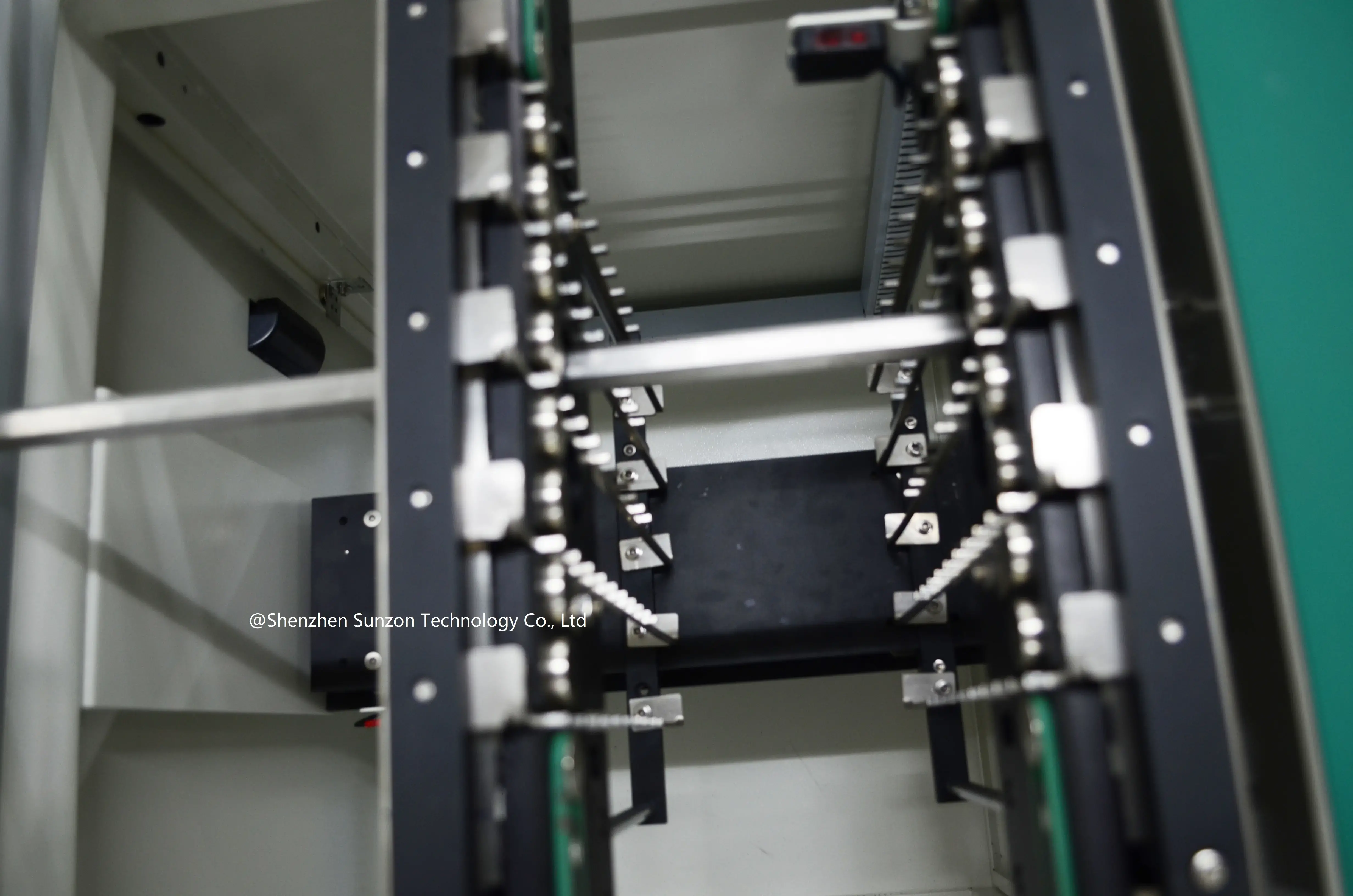

This PCB cache conveyor machine can store NG PCB in buffer without interrupting production.
SunzonTech’s PCB cache conveyor machine provide secure and caring to handling printed circuit board involving SMT process. We consider lots for producing our PCB cache conveyor machine such as durability and reliability. So our PCB cache conveyor machine will be suitable for small or big production systems. And also it can be highly customized with high price-performance ratio.

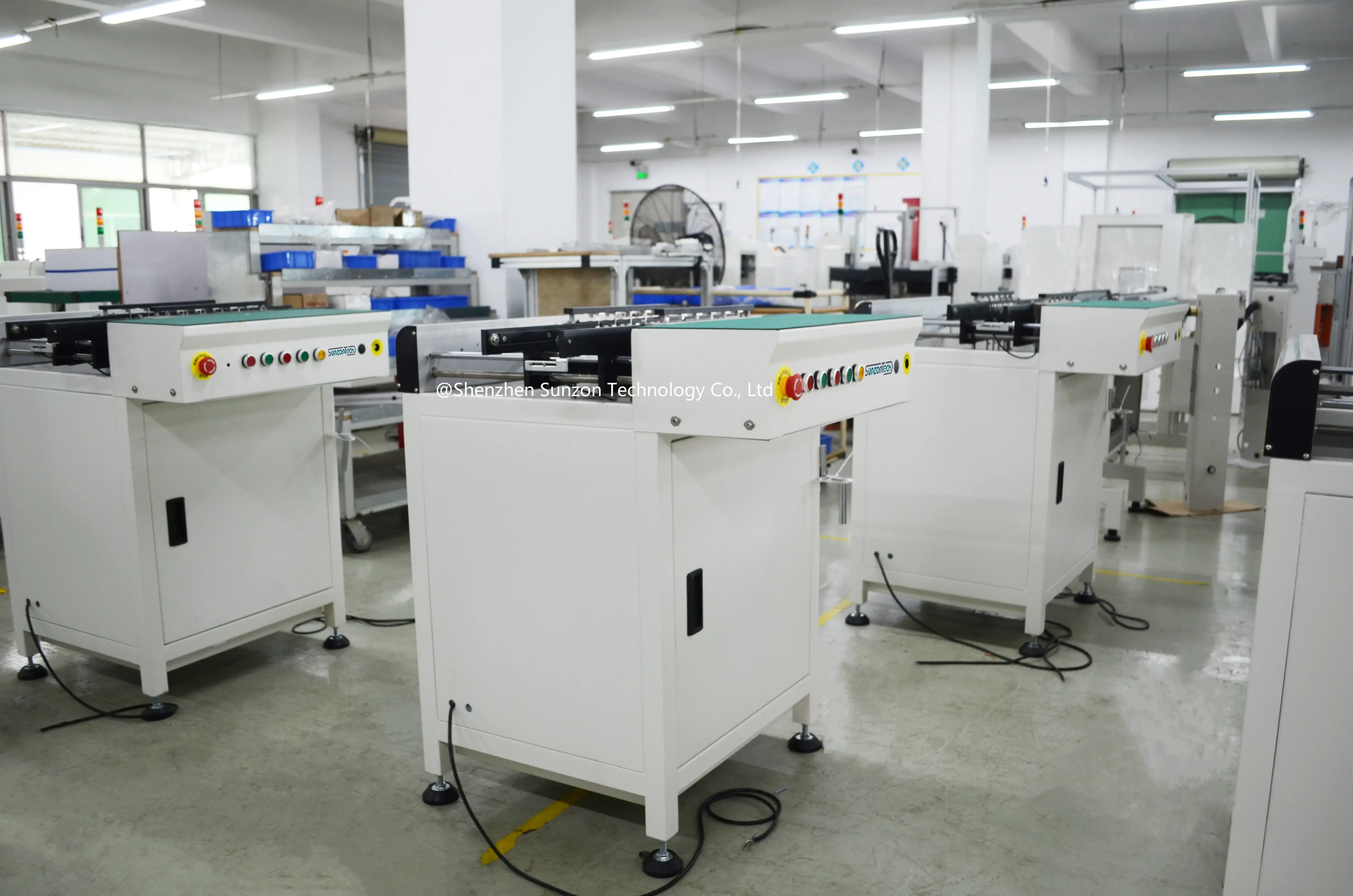

Production Line
Machine details
| Equipment brand | SunzonTech |
| Equipment model | NB-800L PCB cache conveyor machine |
| Transport direction | Customizable left to right or right to left |
| Transport height | 900±20mm |
| Max effective PCB size | PCB size 50*50 330*250 (length*width) |
| PCB thickness | 0.5-4mm |
| Equipment dimension（L*W*H） | 800*680*900mm（L*W*H） |
| PCB loading time | 6-25s adjustable |
| Power supply | AC 220V, 50Hz, 100W |
| Alarm system | Acoustic-optic alarm has three color lights to distinguish the current working state, and the function of acoustic-optic alarm when the operation is interrupted |
| Equipment weight | 120kg |
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
