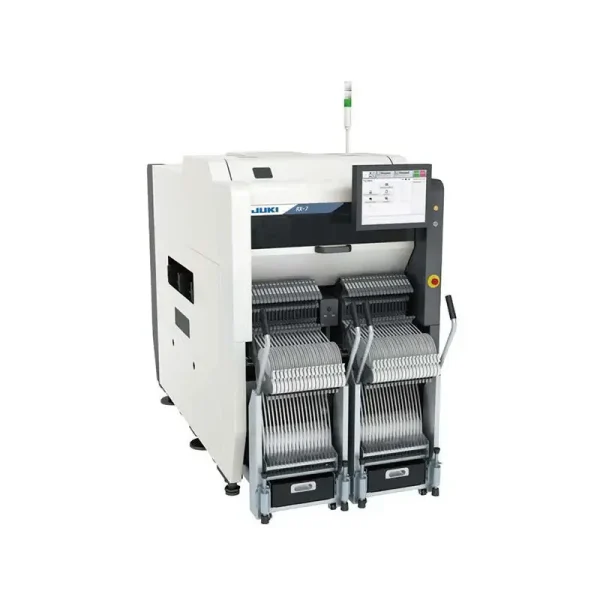

JUKI RX-7 Ultra High-Speed Mounter PCB pick and place machine for SMT production
JUKI’s RX-7 PCB pick and place machine is the perfect solution for companies looking to assemble printed circuit boards with a large variety of components. In particular: micro-components, therefore being able to equip large volumes. The compact design of the RX-7 PCB pick and place machine with a machine width of 0.998 metres offers competitive productivity in a very small space – unsurpassed in the PCB pick and place industry.
Share to:
| Board size | 50 × 50 mm ~ 510 × 450 mm (single mode) 50 × 50 mm ~ 510 × 250 mm (dual mode) |
||
| Component height | 3 mm (P16 × P16 nozzles) 10.5 mm (P16 × P8 nozzles) 10.5 mm (P8 × P8 nozzles) |
||
| Component size | P16 × P16 | 03015 ~ 5 mm | |
| P16 × P8 | 03015 ~ 5 mm (P16 nozzles) 0603 (0201) ~ 25 mm (P8 nozzles) |
||
| P8 × P8 | 0603 (0201) ~ 25 mm | ||
| PCB pick and place Rate | Optimum | 75,000 CPH (P16 × P16), 54,900 CPH (P16 × P8), 34,800 CPH (P8 × P8) | |
| IPC9850 | 49,000 CPH (P16 × P16), 38,000 CPH (P16 × P8), 12,800 CPH (P8 × P8) | ||
| PCB pick and place accuracy | ± 0.04 mm (Cpk ≥ 1) | ||
| Feeder inputs | max. 76 | ||
| Power supply | 200 – 430 VAC, 3-phase | ||
| Apparent power | 3.3 kVA | ||
| Operating air pressure | 0.5 ± 0.05 Mpa | ||
| Air consumption | 20 L / min | ||
| PCB pick and place Machine dimensions(WxDxH) | 998 × 1,895 × 1,530 mm | ||
| Mass(approximately) | 1,950 kg | ||
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
