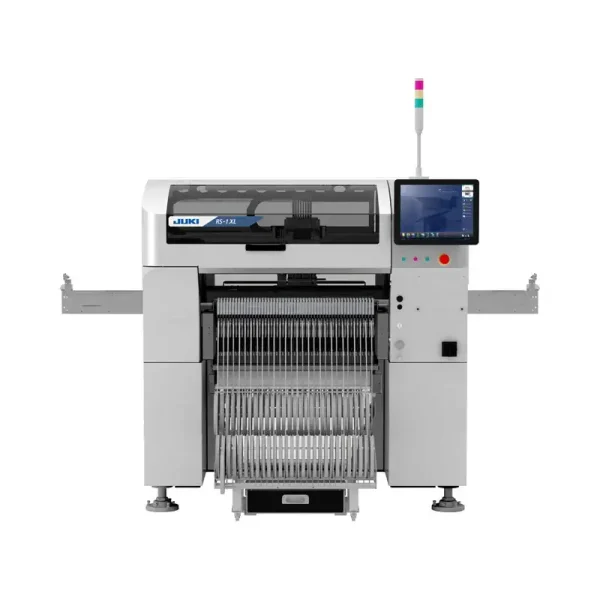

JUKI RS-1XL chip mounter SMT Pick and Place Machine price
The RS-1XL SMT Pick and Place Machine combines the advantages of the RS-1 and RS-1R with the possibility of assembling printed circuit boards up to 560 mm wide (for comparison RS-1 / RS-1R: max. Width 370 mm).
With slightly larger dimensions than a RS-1, the RS-1XL offers the same advantages: fast assembly of the smallest chips (0201 metric) to large components of 50 x 150 mm or 74 mm edge length for square components.
The machine combines the properties of a SMT Pick and Place Machine with a mounter for large components.
There is no need to purchase a special pick and place machine type.
Share to:
| Board size | max. 650 mm × 560 mm (single clamping) | ||
| Component height | 25 mm | ||
| Component size | 0201*2 (metric) ~ 74 mm / 50 × 150 mm | ||
| Placement Rate | Optimum | 42,000 CPH | |
| IPC9850 | 29,000 CPH | ||
| Accuracy of pick and place machine | ± 0.035 mm (Cpk ≥ 1) | ||
| Feeder inputs | max. 112*2 | ||
| Power supply | 200 ~ 415 VAC, 3-phase | ||
| Apparent power | 2.2 kVA | ||
| Operating air pressure | 0.5 ± 0.05 Mpa | ||
| Air consumption | max. 50 L/min | ||
| Dimensions(WxDxH) of pick and place machine | 2,109 × 2,000 × 1,440 mm | ||
| Mass(approximately) | 1,850 kg | ||
| others | When using RF Feeder Series on front and rear.(Optional) | ||
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
