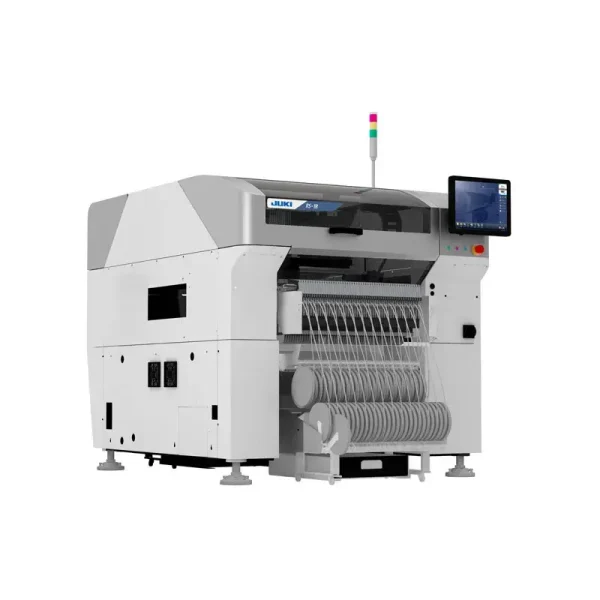

JUKI RS-1R Next Generation Smart Fast chip Mounter Components Mounter for PCB SMT pick and place process
The consistent further development of the tried-and-tested technologies from the RS-1 mounter opens up new, outstanding possibilities:
Even faster assembly of smallest chips (0201 metric) up to large components of 50 x 150 mm or 74 mm edge length for square components. The base frame of the RS-1R mounter has been completely redesigned for this purpose.
The unique Takumi mounter head covers even more different component heights and thus achieves a decisive speed advantage.
The 360 ° visual component recognition allows the secure detection of user-specific polarity marks.
Thanks to the RFID integration in the mounter’s nozzles, these can be traced back completely together with the components and boards.
Share to:
| Board size | max. 650 mm × 370 mm (single clamping) | ||
| Component height | 25 mm | ||
| Component size | 0201*2 (metrisch) ~ 74 mm / 50 × 150 mm | ||
| Mounter Placement Rate | Optimum | 47,000 CPH | |
| IPC9850 | 31,000 CPH | ||
| Placement Accuracy of mounter | ± 0.035 mm (Cpk ≥ 1) | ||
| Feeder inputs | max. 112 | ||
| Power supply | 200 – 415 VAC, 3-phase | ||
| Apparent power | 2.2 kVA | ||
| Operating air pressure | 0,5 ± 0,05 Mpa | ||
| Air consumption | max. 50 L / min | ||
| Mounter dimensions(WxDxH) | 1,500 × 1,810 × 1,440 mm | ||
| Mass(approximately) | 1.700 kg | ||
| others | 250 mm conveyor extension required When unsing RF Feeders on front and rear |
||
