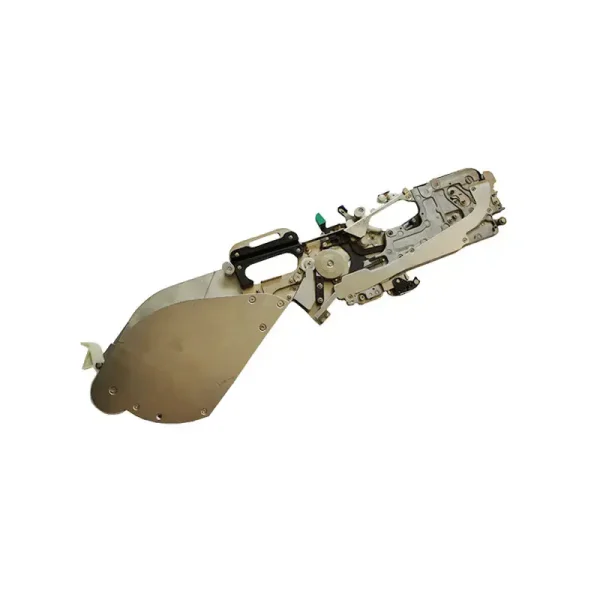

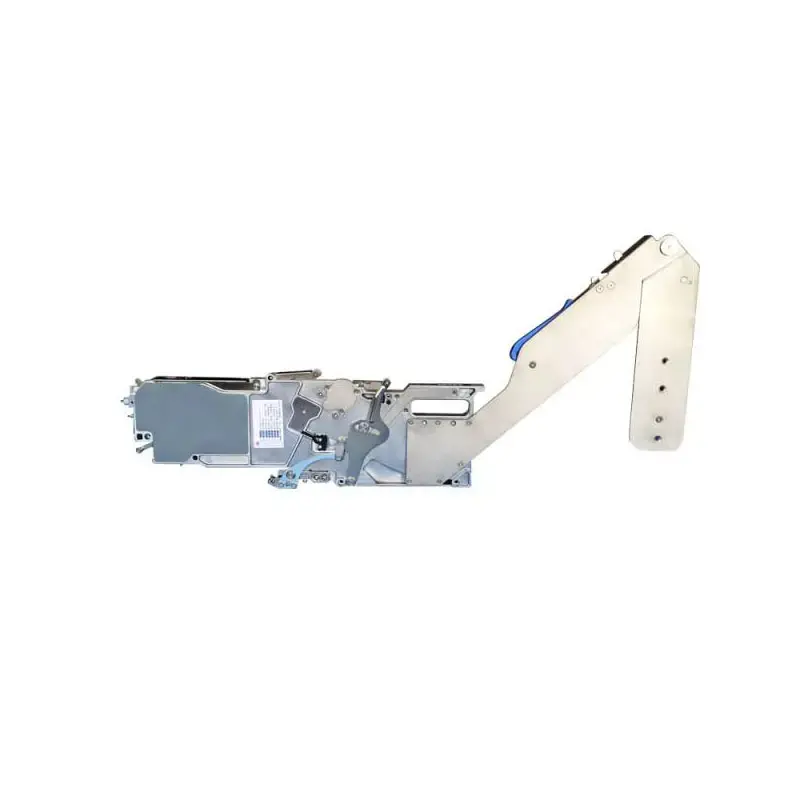

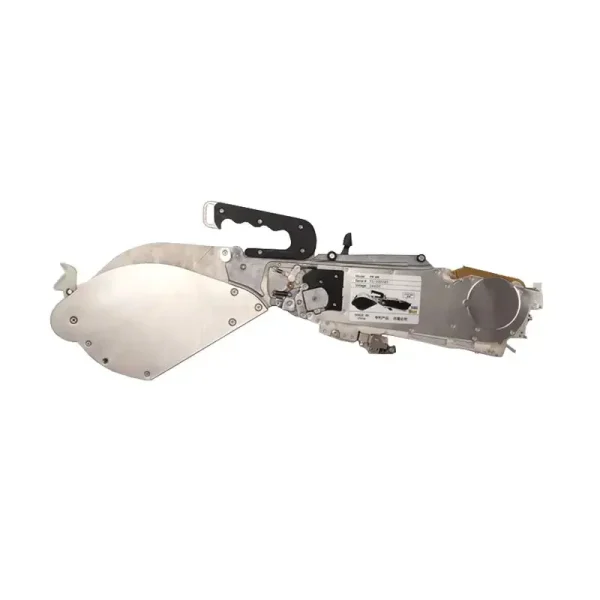

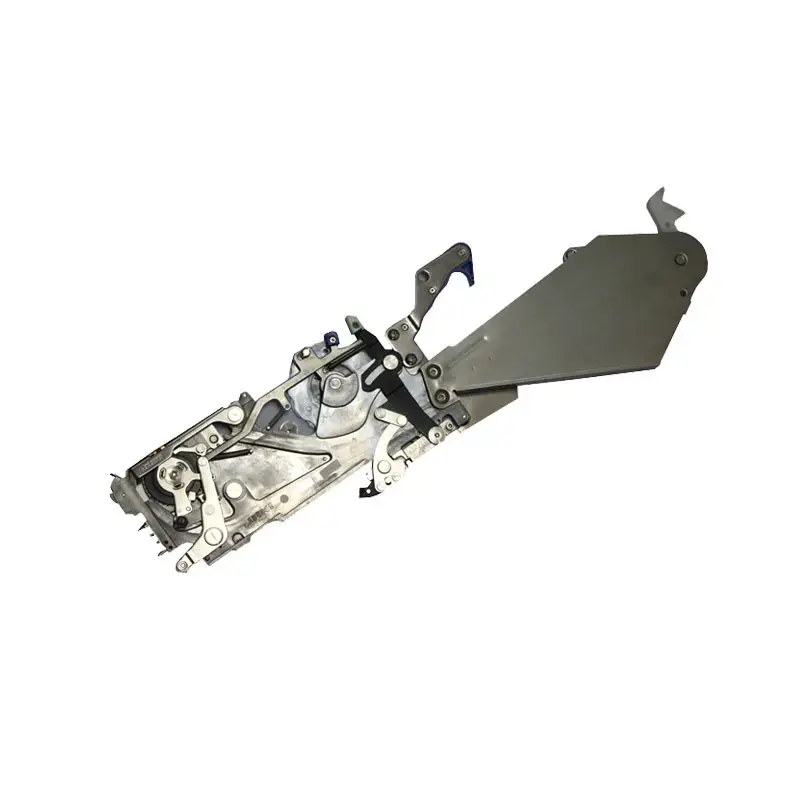

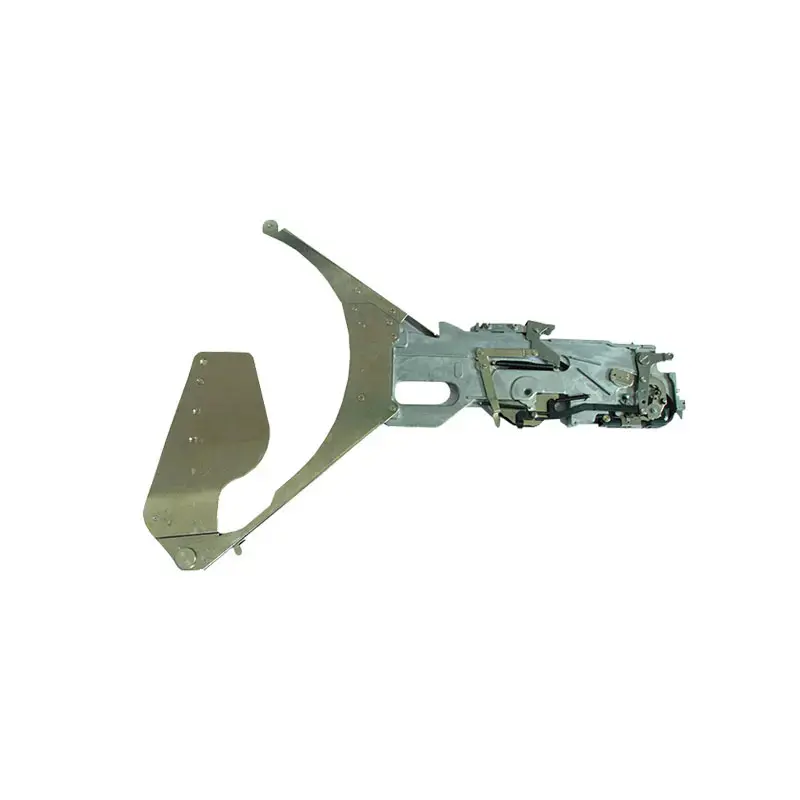

RF08AS SMT Feeder of JukiSMT Feeder for SMT pick and place machine

SunzonTech can provide all kinds of Juki SMT Feeder, please see below for more details.
We can also provide you technical support if need. So if you have any question, please kindly ask us.
RF Series SMT Feeder: small and minitype, strongly increase supply quantity.
EF Series SMT Feeder: motor driver provides high speed and high stable transmission. This SMT Feeder can use from small components to large components. Easier operation and auto correcting can highly increase product efficiency. Dual-rail EF series SMT Feeder can highly reduce material loading time.

Share to:

Model No.	Transfer gap		Belt size (mm)	Occupied positions (12mm3）	Occupied positions (17mm3）
RF08AS	1/2/4		8	1	1
RF12AS	2/4/8/12		12	2	1
RF16AS	4/8/12/16		16	2	2
RF24AS	4/8/12/16/20/24		24	3	2
RF32AS	4/8/12/16/20/24/28/32		32	4	3
RF44AS	4/8/12/16/20/24/28/32/36/40/44		44	5	3
RF56AS	4/8/12/16/20/24/28/32/36/40/44/48/52/56		56	6	4
EF series SMT Feeder specifications
Model No.	Transfer gap		Belt size mm	Occupied positions
EF02HSR	2		8 (0402/0603/1005)	1
EF08HSR	2/4		8	1
EF08HDR	2/4		8	1
EF12FSR	4~12		12	1
EF16FSR	4~16		16	2
EF24FSR	4~24		24	2
EF32FSR	4~32		32	3
EF44FS	4~44		44	3
EF56FS	4~56		56	4
EF72FS	4~56		72	5
EF88FS	4~56		88	6
CF/FF series SMT Feeder specifications
Model No.	Transfer gap	Belt size mm	Model No.	Transfer gap	Belt size mm
AQ02HP	2	0402 paper using	FF242S	8	24mm
CF03HPR	2	0603 paper using	FF243S	12
CF05HPR	2	1005 paper using	FF244S	16
CF08HER	2	8mm plastic using	FF245S	20
CF081PR	4	8mm paper using	FF246S	14
CF081ER	4	8mm plastic using	FF24FS	8-24
CF8L1PR	4	8mm paper using heavy calibre	FF24NS	4-12
CF8LE1R	4	8mm plastic using heavy calibre	FF323R	12	32mm
CN05HPR	2	1005 paper using	FF324R	16
CN08HER	2	8mm plastic using	FF32FR	8-24
CN081CR	4	8mm plastic or paper using	FF32FR-OP	8-32
CN8L1CR	4	8mm plastic or paper using heavy calibre	FF443R	12	44mm
FF121S	4	12mm	FF444R	16
FF122S	8		FF44FR	8-24
FF123S	12		FF44FR-OP	8-44
FF12FS	4~12		FF564R	12-16	56mm
FF12NS	4~12		FF568R	12-32
FF161S	4	16mm	FF56FR	8-24
FF162S	8		FF56FR-OP	8-56
FF163S	12		FF724S	12-16	72mm
FF16FS	4~12		FF728S	12-32	72mm
FF16NS	4~12

What Is The Lead Time?

1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.

2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.

3. The shortest lead time of SunzonTech is 14 days after the deposit!

Why Choose SunzonTech?

1. SunzonTech is a leading PCB handling machine manufacturer in China.

SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.

2. All PCB handling machine will equip with strong material structure and famous brand parts.

3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.

4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.

5. OEM service is also allowed in SunzonTech.

6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.

What Is The Service?

1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.

2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.

3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.

4. SunzonTech will update status of order periodically to let customer better know the status of their order.
