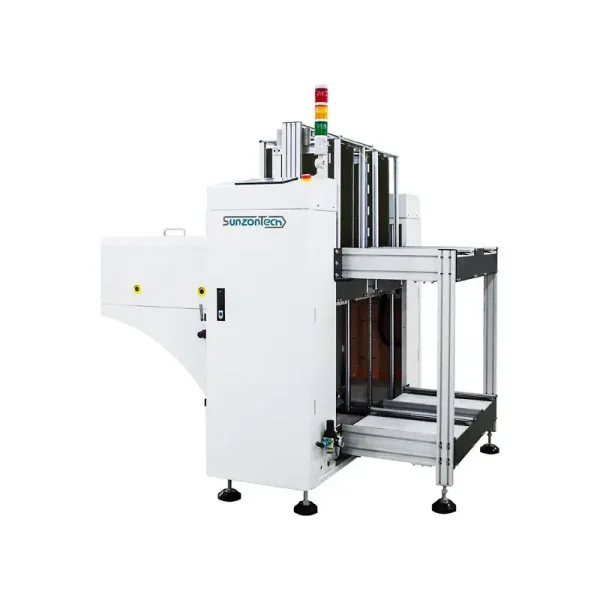

DU-250S-SZ Automatic dual magazine NG OK PCB unloader
Behind dual rail AOI of a SMT production line with small volume, automatic dual magazine NG OK PCB unloader can save work place.
Magazine have two layers, the upper layer is NG magazine and the lower layer is OK magazine.
The upper(NG) box is a special box with left box and right box, both of them have 10 layers.
The lower(OK) box is a standard box with left box and right box, both of them have 50 layers.”
PLC micro computer control which is stable and reliable.
Touch screen control panel which is very easy to operate.
Acoustic-optic alarm system.
Customizable left to right or right to left.
Use standard material rack for strong versatility.
The lifting step of the material frame can be set according to the PCB thickness.

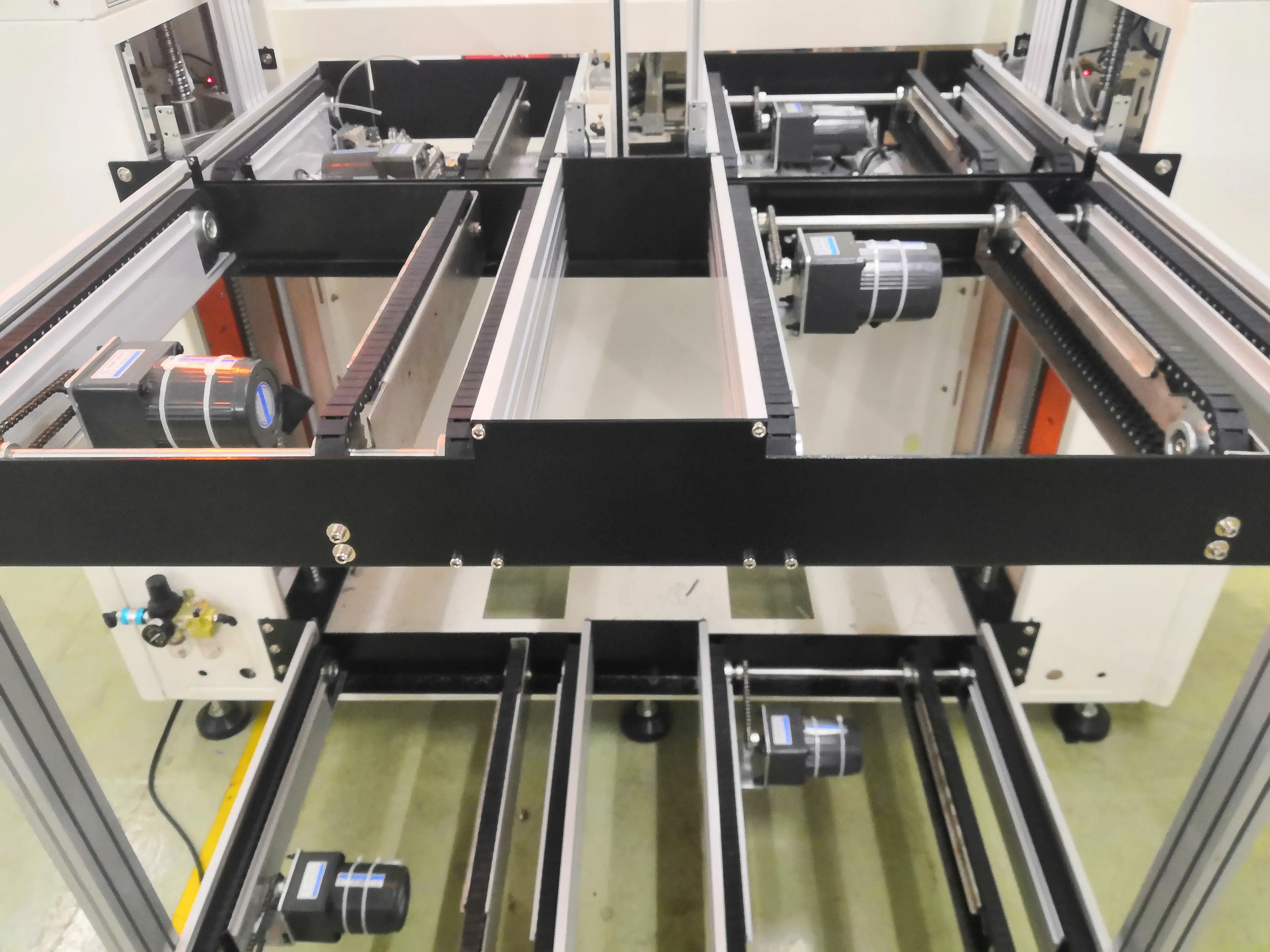

The turnover box use cylinder multi-angle clamping, which is stable and reliable and can correct the deformation of the turnover box.
Special rodless elongated cylinder which is smooth with no gap. Push force is adjustable.
Function of automatic preventing plate stuck.
Dual magazine NG OK PCB unloader.
Share to:
SunzonTech’s DU-250S-SZ dual magazine NG OK PCB unloader provide a smart way for dual rail SMT production system to store OK and NG PCB. It can distinguish OK and NG PCB with AOI signal and store them in each magazines. With standard SMEMA, it can connect with every machines. Further more, it can apply 6 magazines, which can highly increase productivity and save labour cost.
| Equipment brand | SunzonTech |
| Equipment model | DU-250S-SZ Automatic dual magazine NG OK PCB unloader |
| Transport direction | Customizable left to right or right to left |
| Transport height | 900±20mm |
| Max effective PCB size | PCB size 50*70 330*250 (length*width) |
| PCB thickness | 0.5-4mm |
| Magazine size | 335*320*563mm（L*W*H） |
| Magazine load PCB quantity | 50 PCB for each rack |
| Equipment dimension（L*W*H） | 1550*1530*1250mm（L*W*H） |
| PCB loading time | 6-25s adjustable |
| Lifting step distance | 10-20-30-40mm choosable |
| Power supply | AC 220V, 50Hz, 100W |
| Alarm system | Acoustic-optic alarm has three color lights to distinguish the current working state, and the function of acoustic-optic alarm when the operation is interrupted |
| Equipment weight | 210kg |
