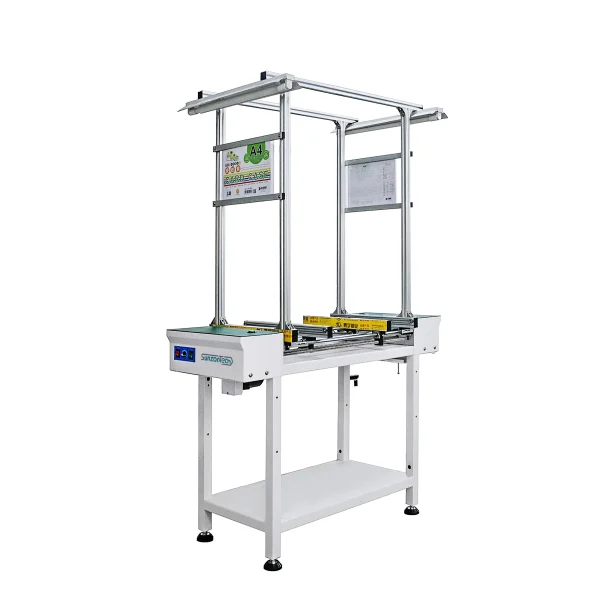

DC-250 dual rail SMT PCB inspection conveyorsmt machines for smt production line
Modular dual rail design inspection conveyor
Weighted design improves stability
More accurate with durable laser-cut stainless steel guide edge
Smooth and parallel width adjustment (screw)
Optional PCB detection mode
Customizable equipment length
Adjustable transport speed
SMEMA compatible
ESD belt
VTV gear motor drive
Highly sensitive “OMRON” photoelectric switch
Equipped with lights
Dual rail PCB inspection conveyor
Share to:
SunzonTech’s dual rail PCB inspection conveyor machine provide secure and caring to handling printed circuit board involving SMT manufacturing. Conveyor with light will be easier for operator to do inspection or test. We consider lots for producing our dual rail PCB inspection conveyor products such as durability and reliability. So, our dual rail PCB inspection conveyor machine will be suitable for small and big production systems. And also it can be highly customized with attractive price-performance ratio.

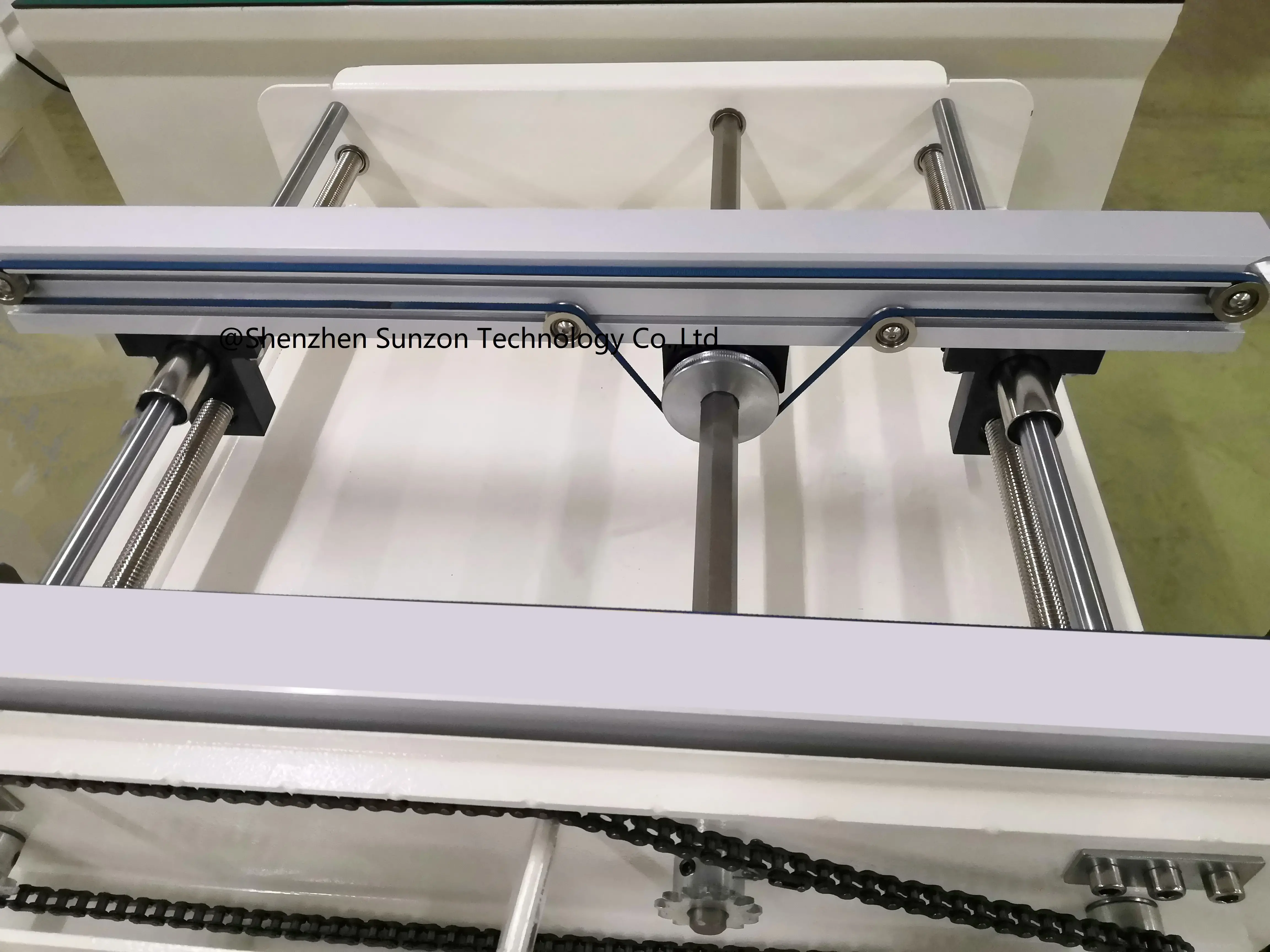

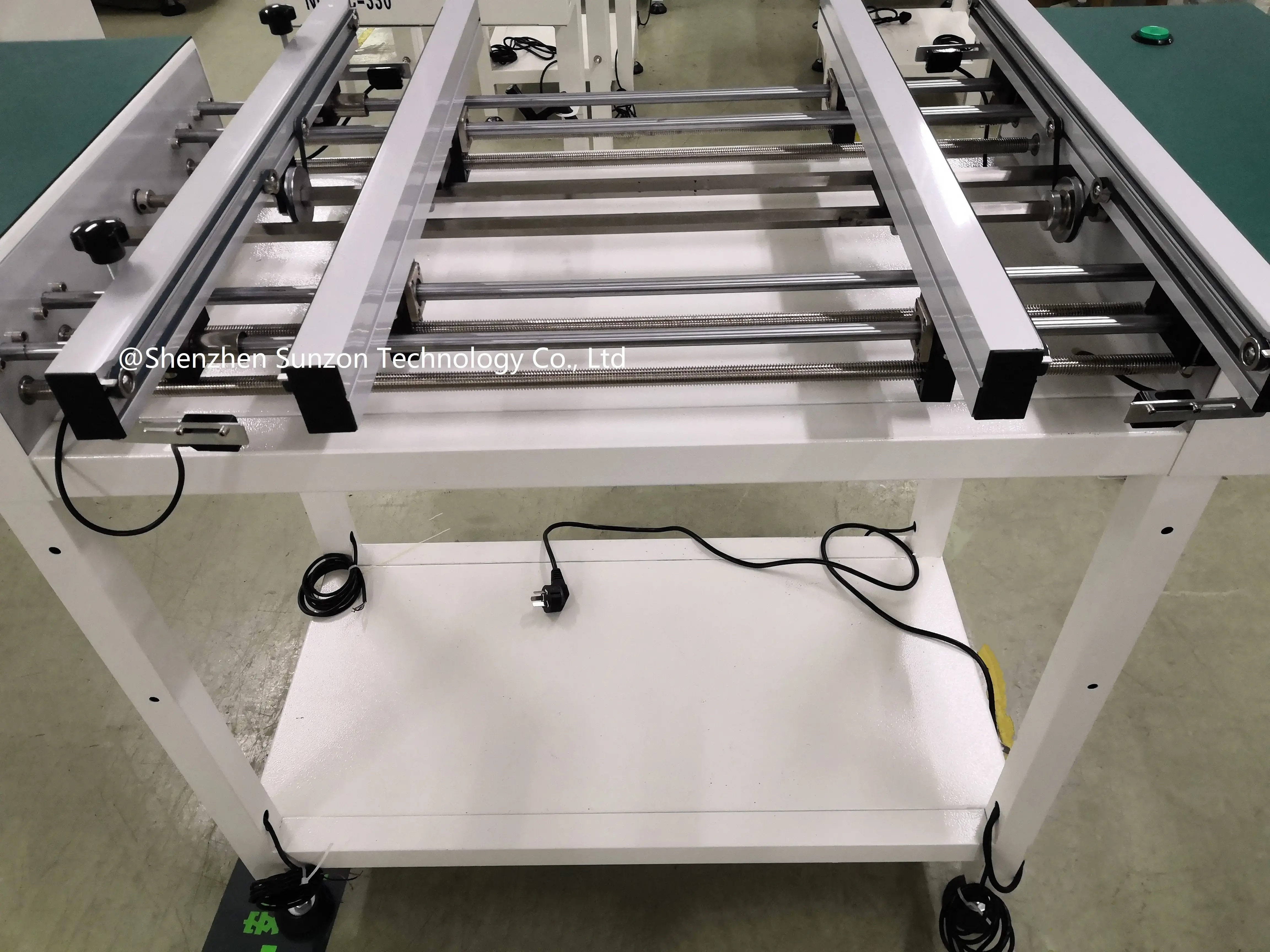

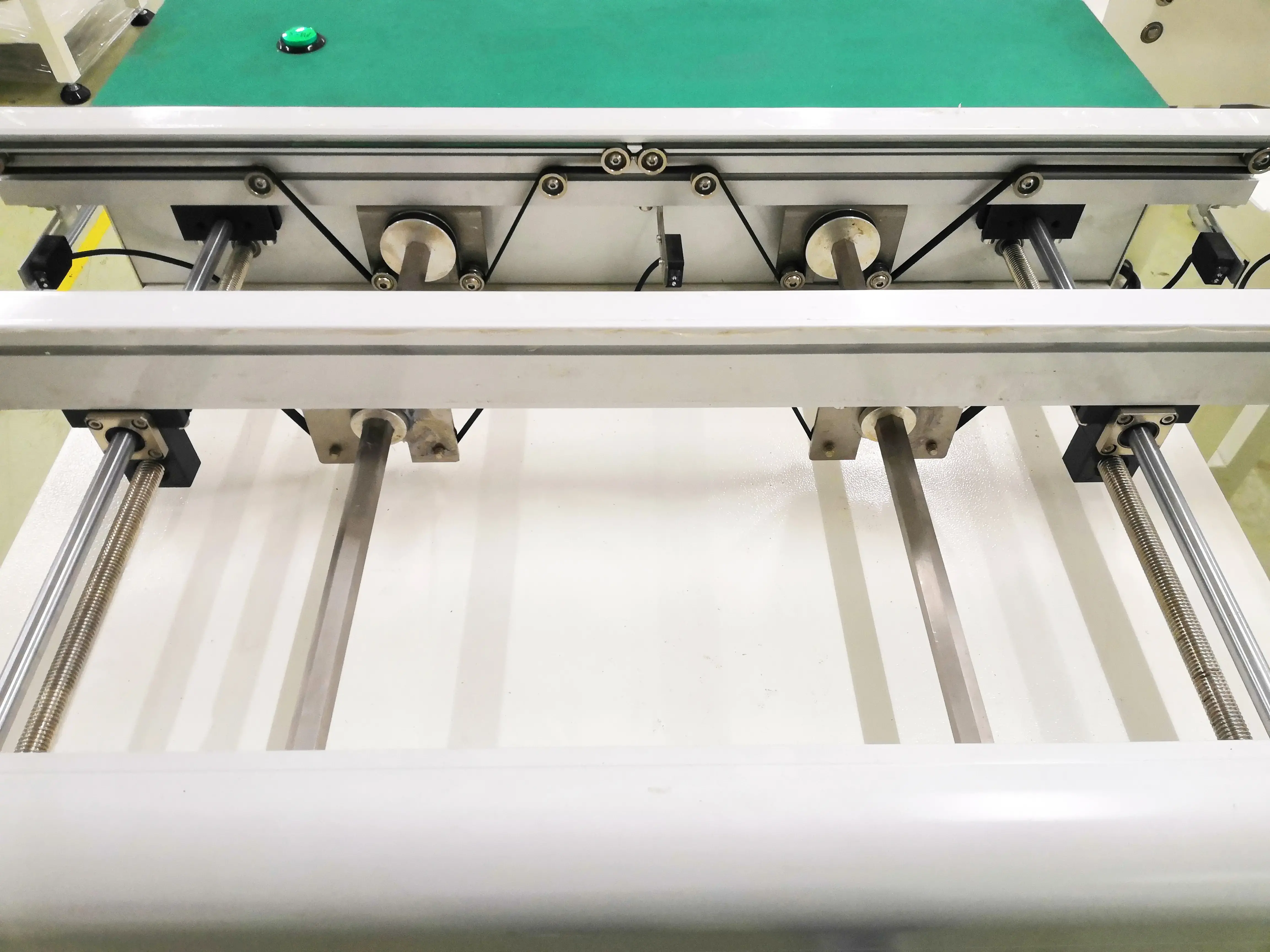

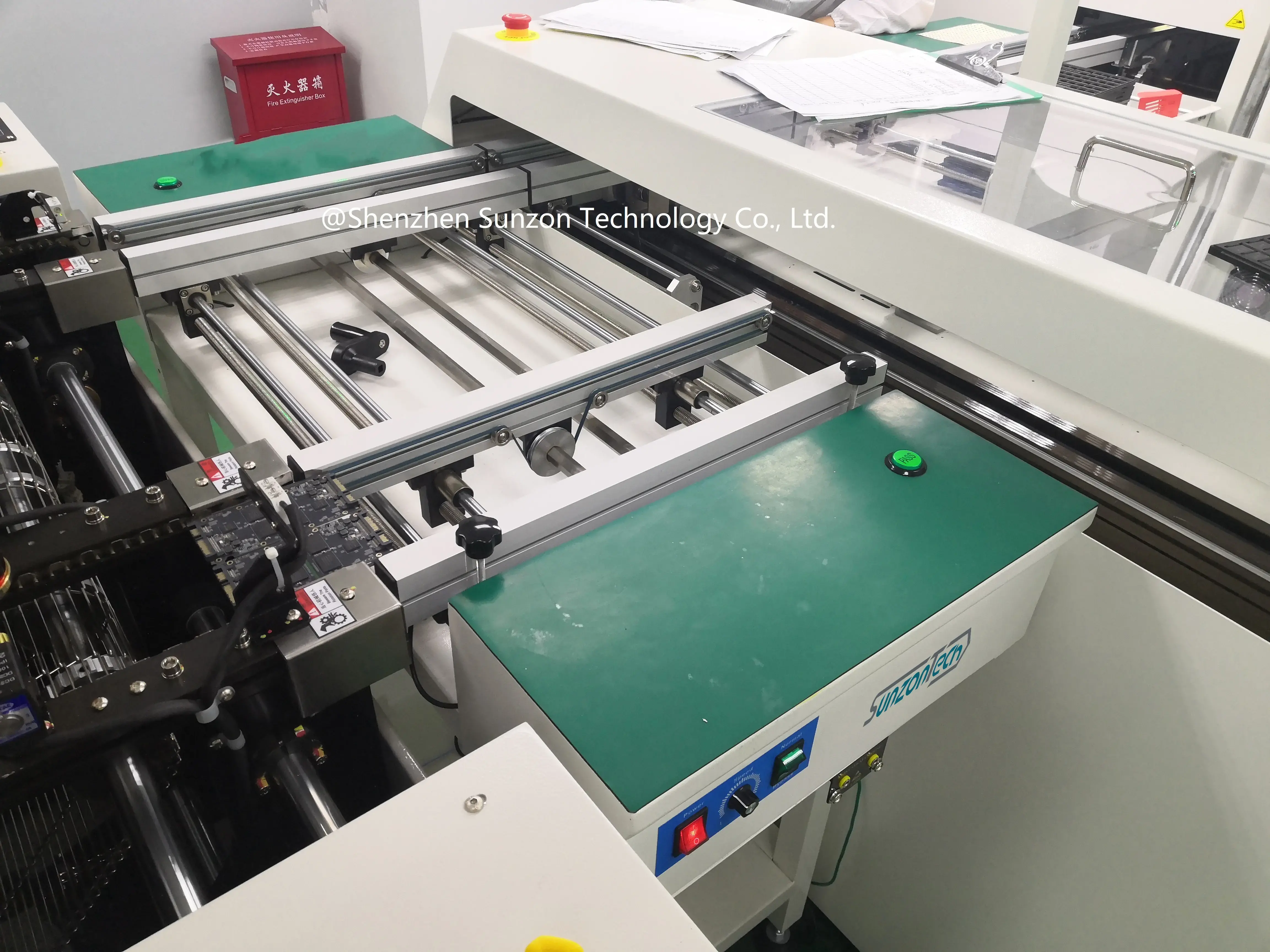

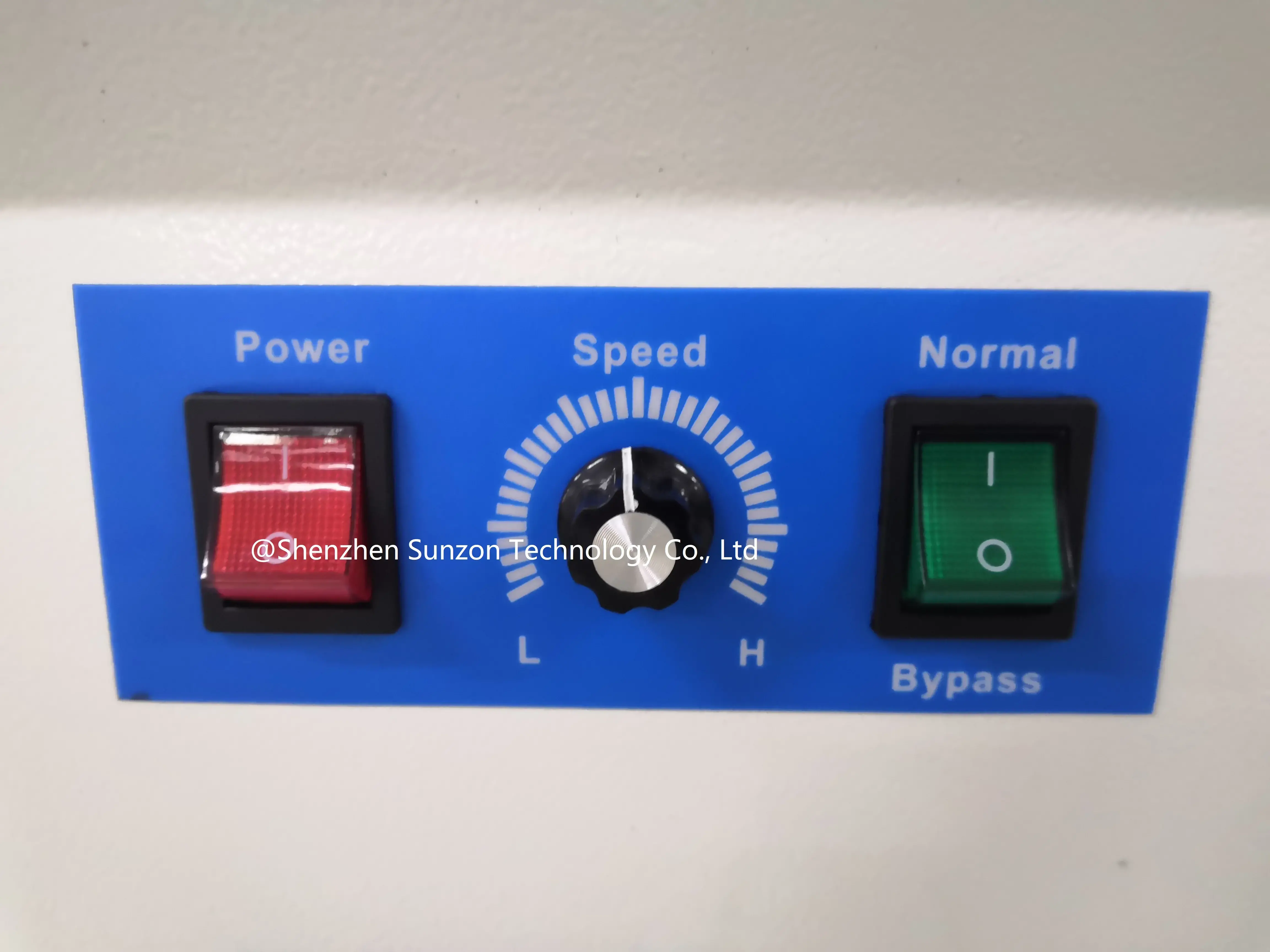

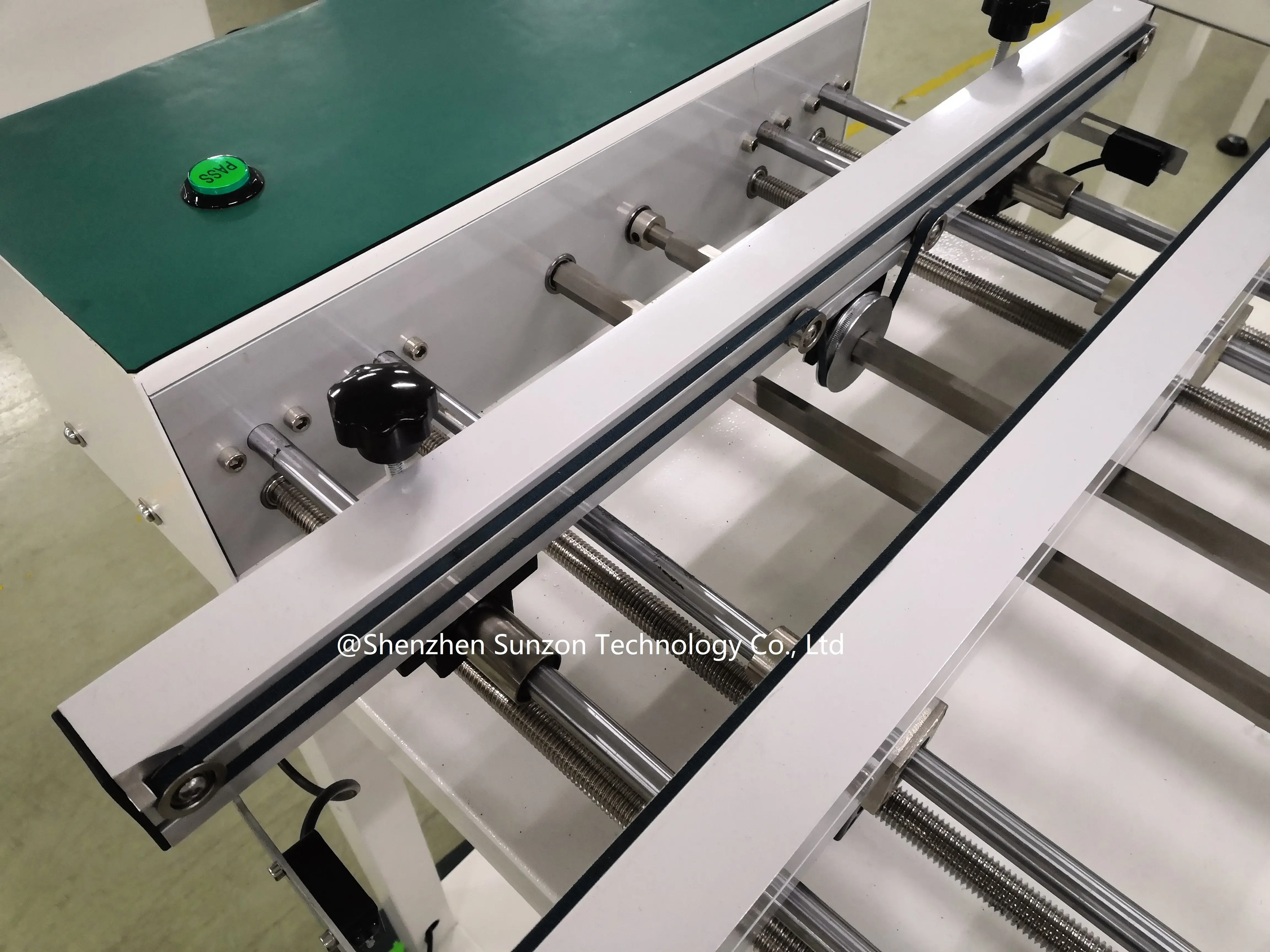

Details Picture
| Equipment brand | SunzonTech |
| Equipment model | DC-250 dual rail PCB inspection conveyor |
| Transport type | Flat belt conveyor / Round belt conveyor |
| Transport speed | 0.5~20m/s |
| Transport direction | Customizable left to right or right to left |
| Transport height | 900±20mm |
| Max effective PCB size | （L）445*(W)50-250mm |
| Equipment dimension（L*W*H） | 600mm*1100mm*920mm |
| Power supply | AC 220V, 50Hz, 100W |
| Equipment weight | 90kg |
1. SunzonTech always has many stocks of standard machine. So the day you order will be the day we are able to ship the machine.
2. SunzonTech has a mature supply chain which response quickly. So we are able to coordinate all projects and provide you the shortest lead time.
3. The shortest lead time of SunzonTech is 14 days after the deposit!
1. SunzonTech is a leading PCB handling machine manufacturer in China.
SunzonTech is able to design, R&D and produce all types of PCB handling machine according to the requirement from customer.
2. All PCB handling machine will equip with strong material structure and famous brand parts.
3. SunzonTech is able to provide 3D drawing for customer who order customized PCB handling machine.
4. The customized machine will be 100% meet customer’s requirement, no matter in material or parts.
5. OEM service is also allowed in SunzonTech.
6. SunzonTech is able to provide the most professional and cost saving proposal of PCB handling machine for your SMT production line.
1. SunzonTech will provide one year gurrantee and life long maintenance for all machines from SunzonTech. Parts will provide for free for period of warranty.
2. On site service is available in many areas such as Vietnam, Philippine, Mexico, Thailand etc.
3. SunzonTech will hear all requirement from customer and find every possible way to solve the problem. We are always hearing and supporting.
4. SunzonTech will update status of order periodically to let customer better know the status of their order.
