Coastal Tide station kit for water level measure:
Including SunzonTech tide gauge with a portable tidestation.

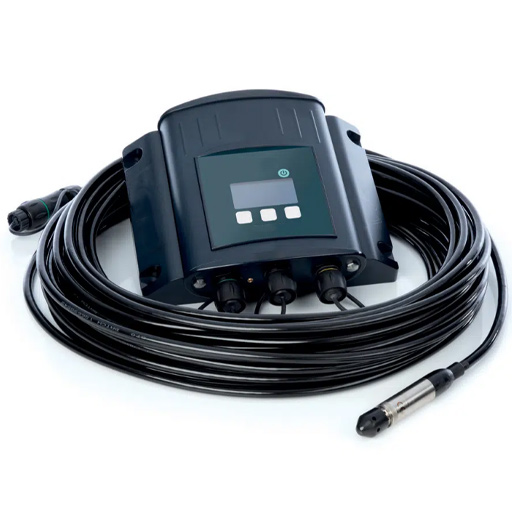

The SunzonTech tide gauge is a cost-effective, accurate way to record water level heights while also collecting meteorological data via ultrasonic wind speed and direction sensors.
Suitable for use in fresh or salt water, this small water level logger can be used for up to one year, depending on sampling rate. Instrument setup and data retrieval is via the display panel or the included PC software. Alternatively, the system can be equipped with a radio module for real-time data transmission.
| Temperature | |
| Type | Titanium housed PRT |
| Range | -5 – +35°C |
| Accuracy | ±0.01°C |
| Resolution | 0.001°C |
| Logging Unit | |
| Housing & Bracket | Injection molded housing, IP67 rated |
| Power | • 4 C-cell batteries in separate sealed compartments |
| • Tool-free battery replacement | |
| • Alkaline batteries provide up to one year of autonomous sampling power | |
| Memory | 512 MB SD card memory |
| (virtually unlimited data storage) | |
| Sampling | • Raw data sampled at 8Hz |
| (average and SD recorded for burst samples) | |
| • 5 pre-programmed burst modes | |
| • Custom sampling modes. | |
| • Continuous sampling mode (1Hz) | |
| Switching | Device power switch |
| Resolution | Data logging to 1mm resolution |
| Comms | Integrated wireless module for short-range wireless communication |
| RS232/RS485 for wired communication | |
| Dimensions | Housing: 52 mm x 144.5 mm x 197 mm |
| Bracket: 35 mm x 210 mm x 159 mm | |
| Mount: 61.5mm x 210 mm x 197 mm | |
| Weight | ~1.1 kg |
| Containing | |
| SunzonTech portable water level recorder | |
| • Electronics/logger in a rugged injection moulded housing | |
| • Wall mount | |
| • Battery | |
| • Windows Express software | |
| • Operating manual | |
| The following sensor options are required | |
| 1 bar sensor includes 20m cable and connector, other cable lengths up to 100m | |
SunzonTech portable tidestation

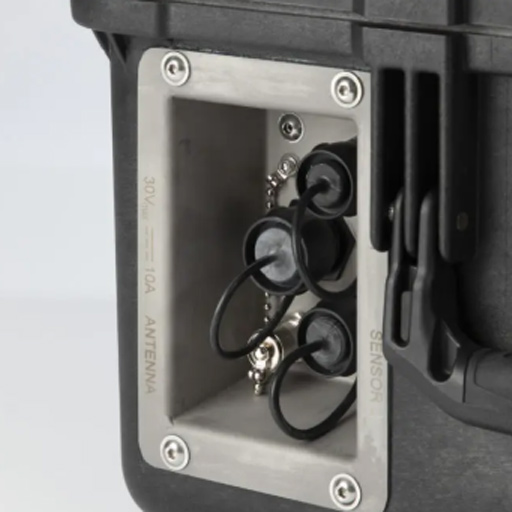

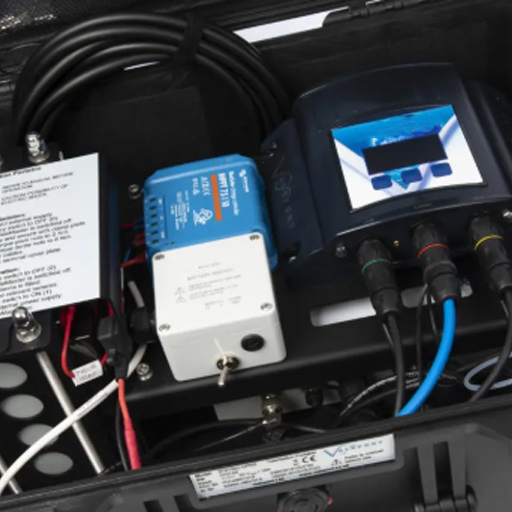

SunzonTech Portable TideStation is a portable measurement solution for monitoring tide, weather and other sensors in a large rugged ABS housing.
Choice of UHF or GPRS telemetry, connection to pressure or radar sensors, and interface to other weather systems. Data is recorded locally and broadcast to a base station as needed.
| Enclosure Configuration | |
| • Adapted Peli 1560 – transportable hard case which has a retractable extension handle and strong polyurethane wheels. – 560 x 455 x 265 mm – corrosion-proof, crush-proof, IP67 • Fittings for: – SunzonTech tide gauge – 1 of 2 telemetry options: Radio: SATEL – SATELLINE-M3_TR1 GPRS: 1 port Scannex ip.buffer – Batter Isolation switch – Lead Acid battery module (24Ahr) • 12V Regulator (for solar power charging) • Pressure relief valve • Operational weight does not exceed 25kg |
|
| Features | |
| Comes with hard case, mountings and wiring for: – SunzonTech tide gauge – 24Ah rechargeable lead acid battery and solar charger – UHF transmitter (403-470MHz) |
|
| Battery Life Indication (Fully charged 24Ah battery) | |
| 1x Pressure Transducer observation per minute each data set telemetred immediately | UHF radio ~300 days |
