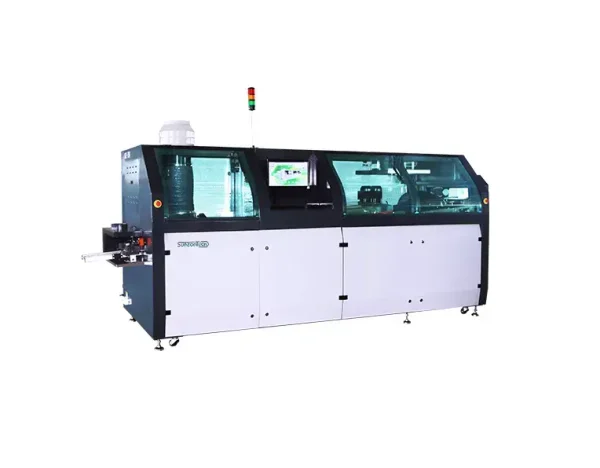

Auto soldering machine UTX wave soldering machine Auto soldering machine for PCB DIP production line
The transfer system uses sectional floating structure to prevent deformation of transportation rail.Non-stick titanium fingers design and directly connected to assure smooth PCB loading.
Spray flux unit has integrated the mechanical moving body, gas and liquid sprayer and electrical control into one unit,and fast connect controller. New precision spray nozzle ensures efficient and even spraying, meeting the needs of water soluble soldering fluxes.
Preheating system consists of three energy saving drawer structure preheating zones using hot air and infrared heating tube, allows election of mixed preheating mode and ensure temperature stability.
Air cooling system ( cold water cooling system is optional).
Share to:
SunzonTech UXT series auto soldering machine is based on customer demand and adopts modular, digital and humanized design. With superiority in function, performance, stability, reliability, security, maintainability,operability and humanization, it not only reduces the operating costs, but also provides qualified products for quality, quantity and production with strong guarantee, it is the peak work in the field of soldering equipment and the best choice and brand product of the customer.
| Model NO | UXT-350 auto soldering machine | UXT-450 auto soldering machine | UXT-610 auto soldering machine |
| Dimension:L×W×H(mm) | 4350*1480*1750 | 4350*1580*1750 | 4350*1740*1750 |
| Weight | 1800kg | Approx.2100kg | Approx.2600kg |
| Power Supply | 3PH 380V 50HZ | 3PH 380V 50HZ | 3PH 380V 50HZ |
| Start up Power | 32KW | 32KW | 45KW |
| Operation Power Consumption | Approx.8KW | Approx.8KW | Approx.11KW |
| Control System | PC+PLC | PC+PLC | PC+PLC |
| Spray Pressure | 0.2Mpa~0.4Mpa | 0.2Mpa~0.4Mpa | 0.2Mpa~0.4Mpa |
| Exhaust | (Top exhaust)+(Side exhaust) | (Top exhaust)+(Side exhaust) | (Top exhaust)+(Side exhaust) |
| Exhaust Ducting Diameter(mm) | 250 | 250 | 250 |
| Exhaust Capacity | 30M3/min | 30M3/min | 30M3/min |
| Preheating Mode | (Convection/IR emitter) | (Convection/IR emitter) | (Convection/IR emitter) |
| Preheating Length(mm) | 1800 | 1800 | 1800 |
| Preheating Temperature | (Room temperature)~200 | (Room temperature)~200°C | (Room temperature)~200C |
| Warm-up Time(min) | Approx.12min(setting:150°C) | Approx.12min(setting:150°C) | Approx.12min(setting:150°C) |
| Blower Motor | 250W 3PH 220 VAC | 250W 3PH 220 VAC | 250W 3PH 220 VAC |
| PCB Width(mm) | 50~350 | 50~450 | 50~610 |
| Conveyor Direction | L-R(Option:R-L) | L-R(Option:R-L) | L-R(Option:R-L) |
| Conveyor Speed(mm/min) | 500~1800 | 500~1800 | 500~1800 |
| Conveyor Height(mm) | 750+20 | 750+20 | 750+20 |
| Available Component Height(mm) | (Top)120(Option:250)(Bottom)15 | (Top)120(Option:250)(Bottom)15 | (Top)120(Option:250)(Bottom)15 |
| Conveyor Speed Control Mode | (Closed loop) | (Closed loop) | (Closed loop) |
| Fingers | (New Design Double-hook Type)Approx: ①(Spring Pressing Finger): (2D-40(D-40 Type Finger);(3)(Double-hook Finger); |
(New Design Double-hook Type) Option:Fixture claw |
|
| Conveyor Angle | 4~7° | 4~7° | 4~7° |
| Type of solder Pot | Motor drive | Motor drive | Motor drive |
| Solder Pot Material | Casting Iron | Casting Iron | Casting Iron |
| Wave Height Adjustment | (Inverted)Approx:(Digital Control by PC) | ||
| Cooling Method | (Air Cooling) Option: (Water cooling) | ||
| Heater Power | 220V 13.5KW | 220V 13.5KW | 280V 18KW |
| Solder Pot Temperature | 300℃ | 300℃ | 300℃ |
| Solder Pot Capacity | 480KG | 550KG | 640KG |
| Wave Drive Power | 180Wx2 3PH 220 VAC | 180Wx2 3PH 220 VAC | 180Wx2 3PH 220 VAC |
| Solder Pot Warm-up Time | Approx.150min(setting: 250℃) | Approx.150min(setting: 250℃) | Approx.150min(setting: 250℃) |
| Finger Cleaning System | (Brush) | (Brush) | (Brush) |
